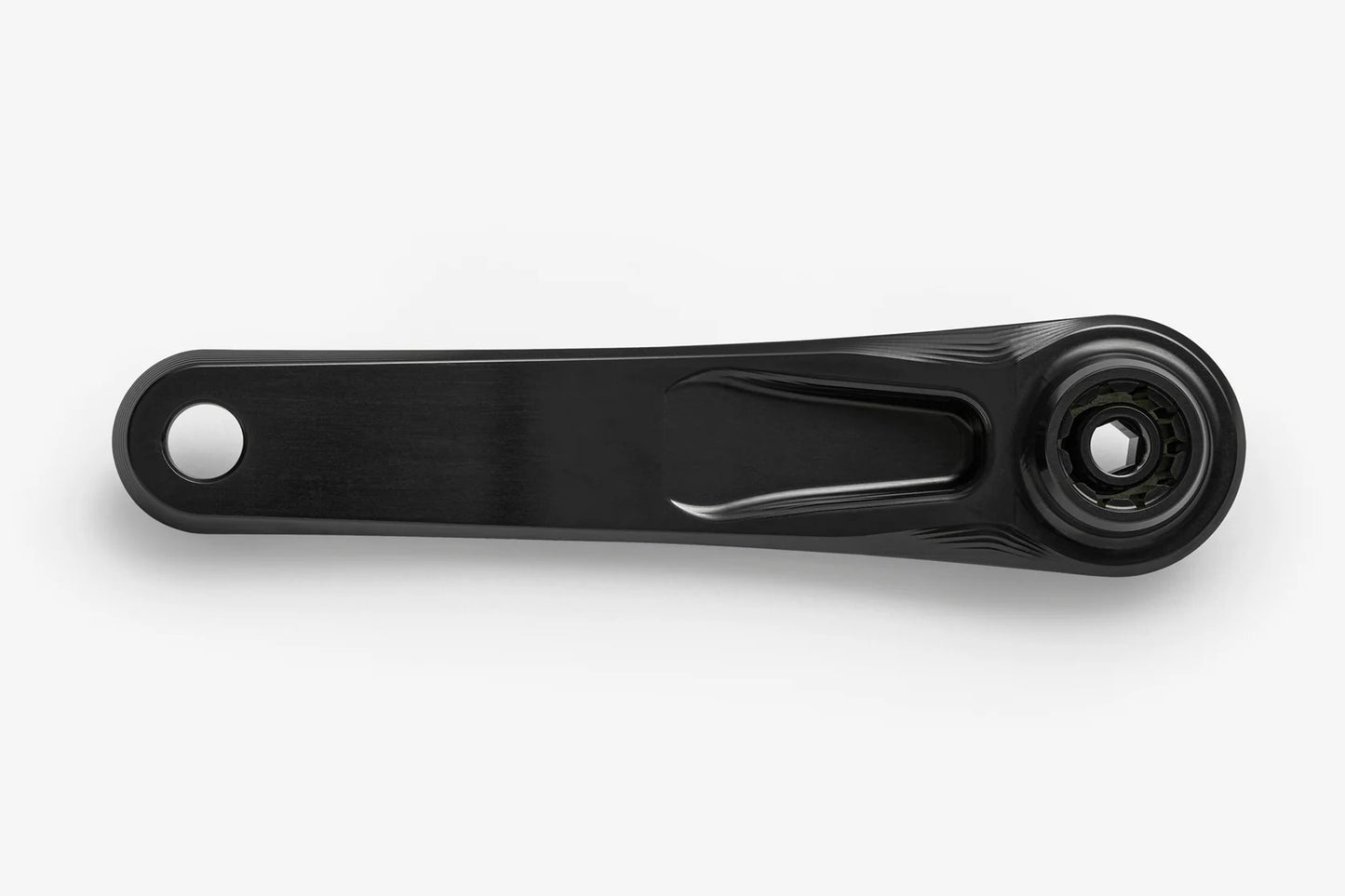

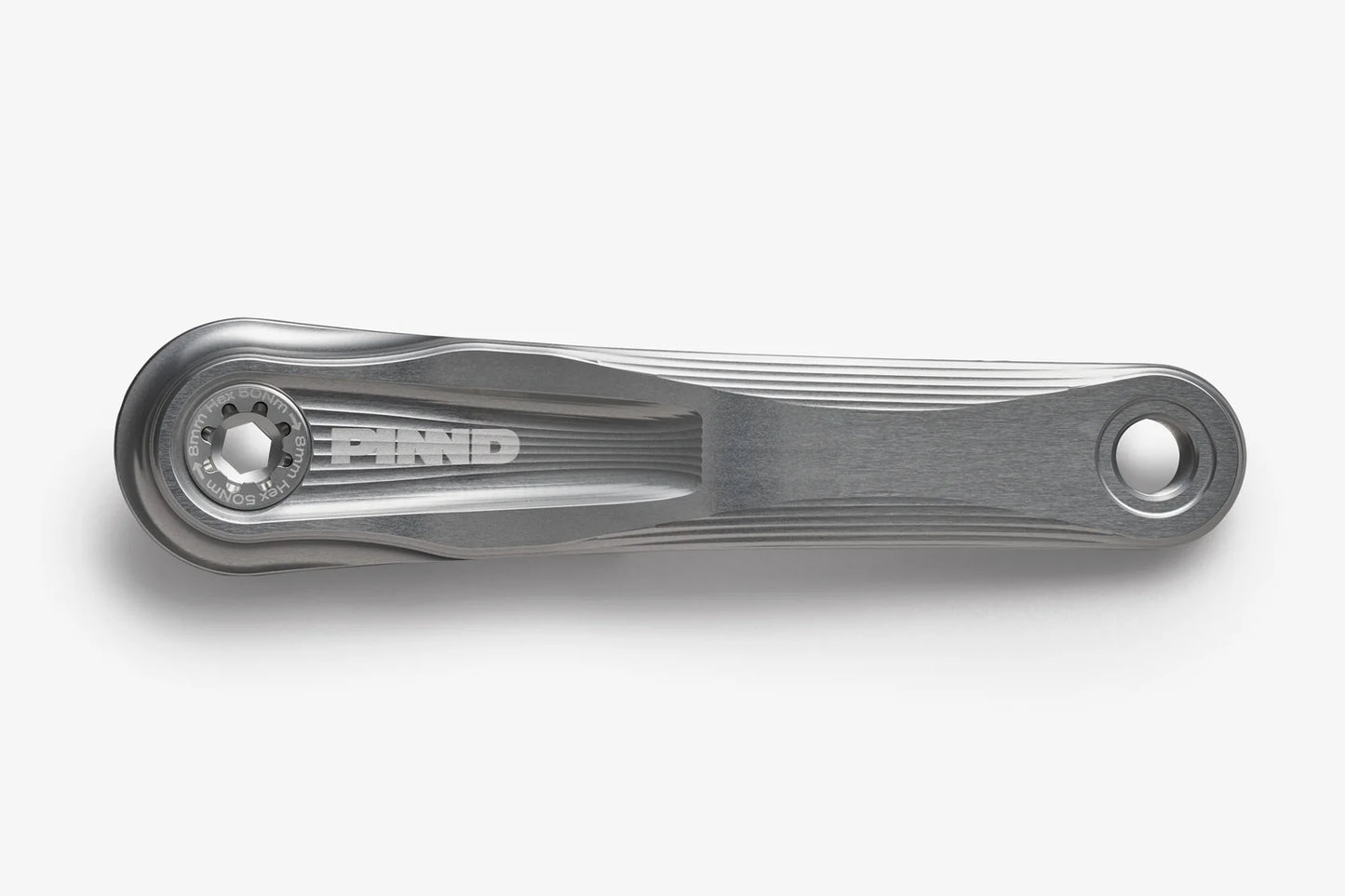

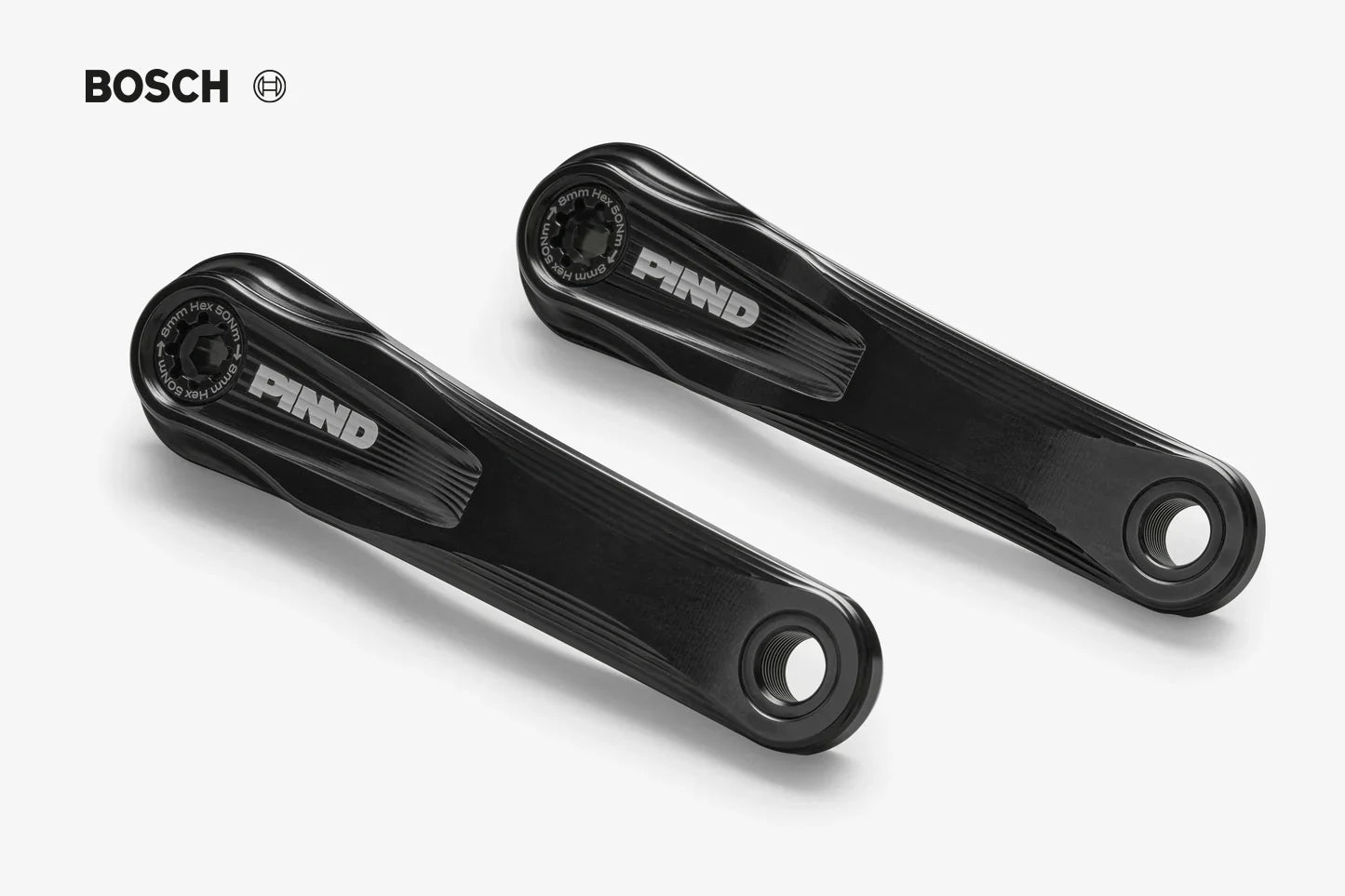

PINND Bosch Gen5/ ISIS Narrow E-Bike Cranks
PINND Bosch Gen5/ ISIS Narrow E-Bike Cranks
Couldn't load pickup availability
PINND Bosch / ISIS E-Bike Cranks
🇦🇺 Australian stock – fast dispatch, free shipping & local support
Made in Scotland from 7075 T651 anodised aluminium and certified for Enduro (Cat 4) use.
Compatible with:
-
Bosch Gen5 (BDU31YY, BDU37YY, BDU38YY)
-
Specialized Turbo 3.1
-
Brose Drive Peak
-
Brose Drive S-Mag
-
SRAM Powertrain
-
DJI Avinox
-
Sach RS
-
TQ HPR50
-
Fazua 50
-
Polini E-P3+
-
Bafang M820
These cranks use the "ISIS" spline and may be compatible with other motors not listed above.
Highlights
• Offering shorter lengths for better ground clearance

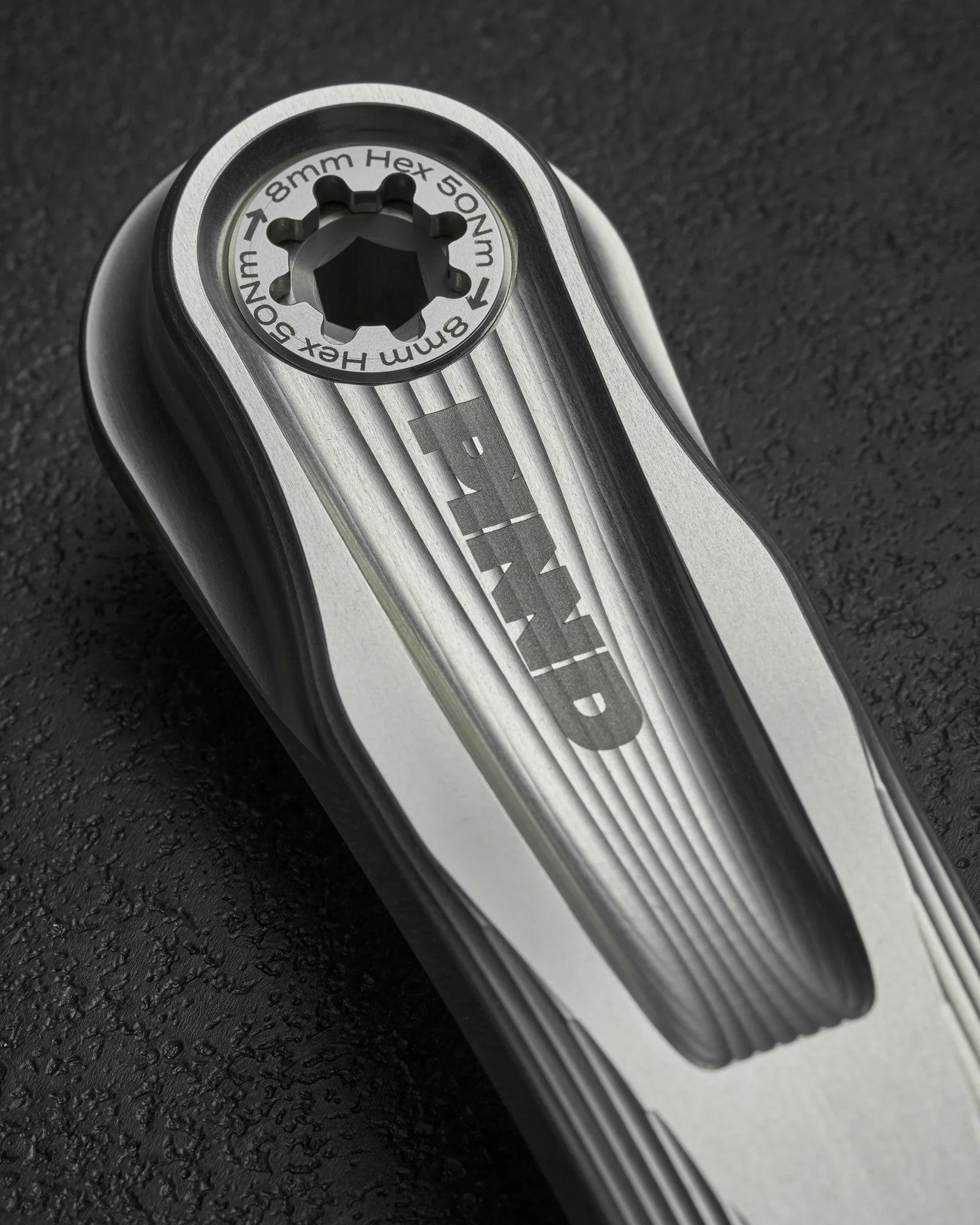

• Self extracting design for ease of fitting and removal

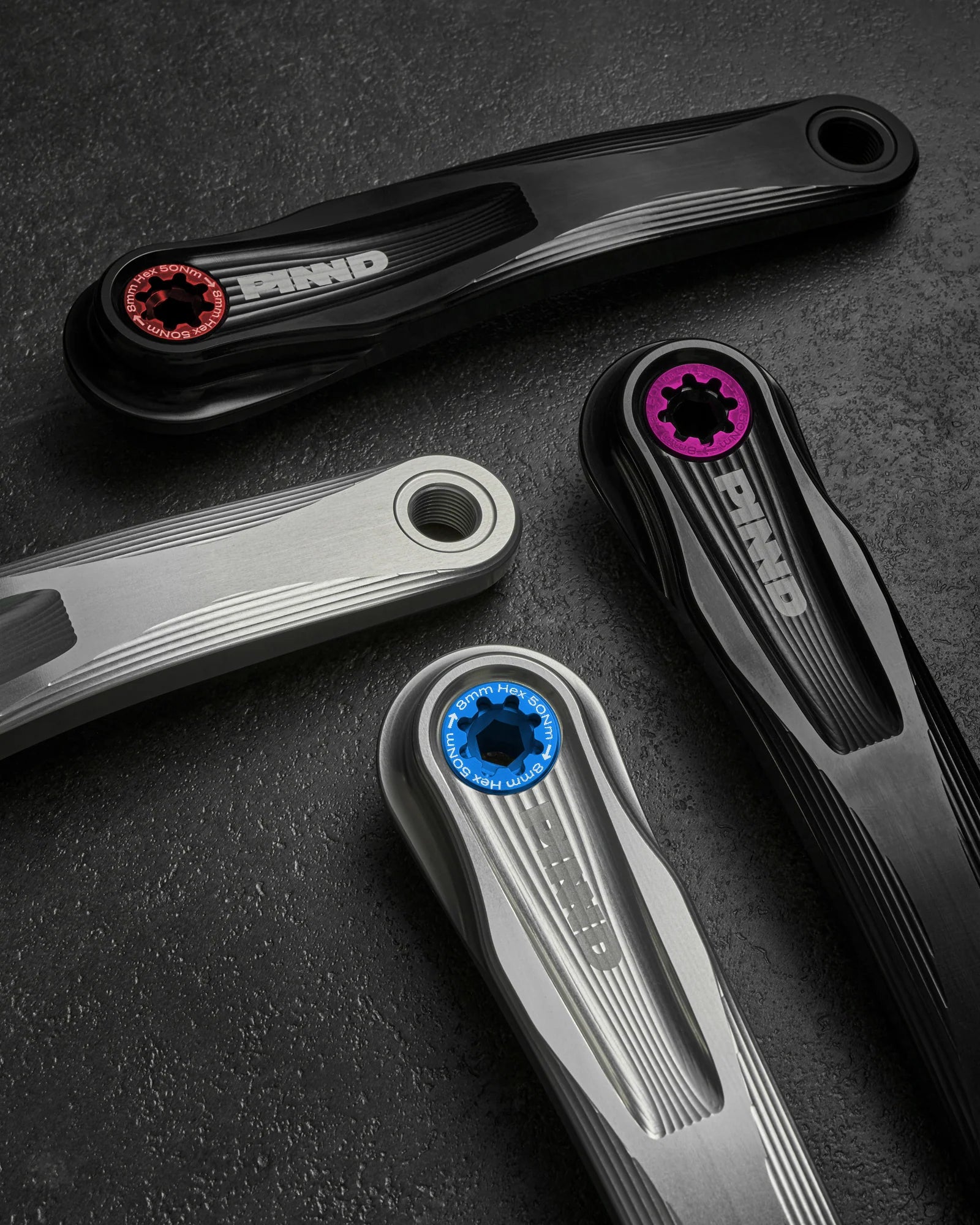

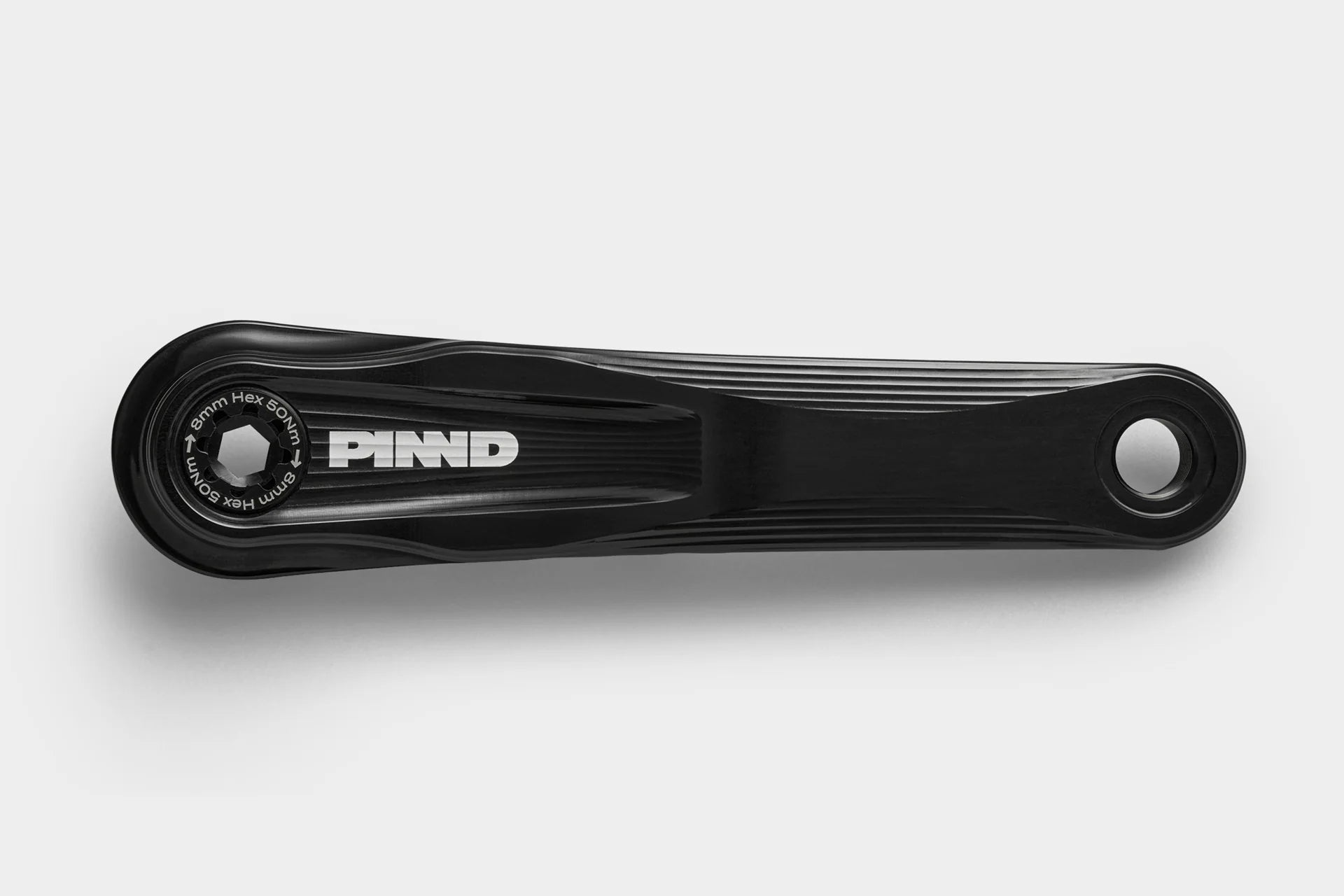

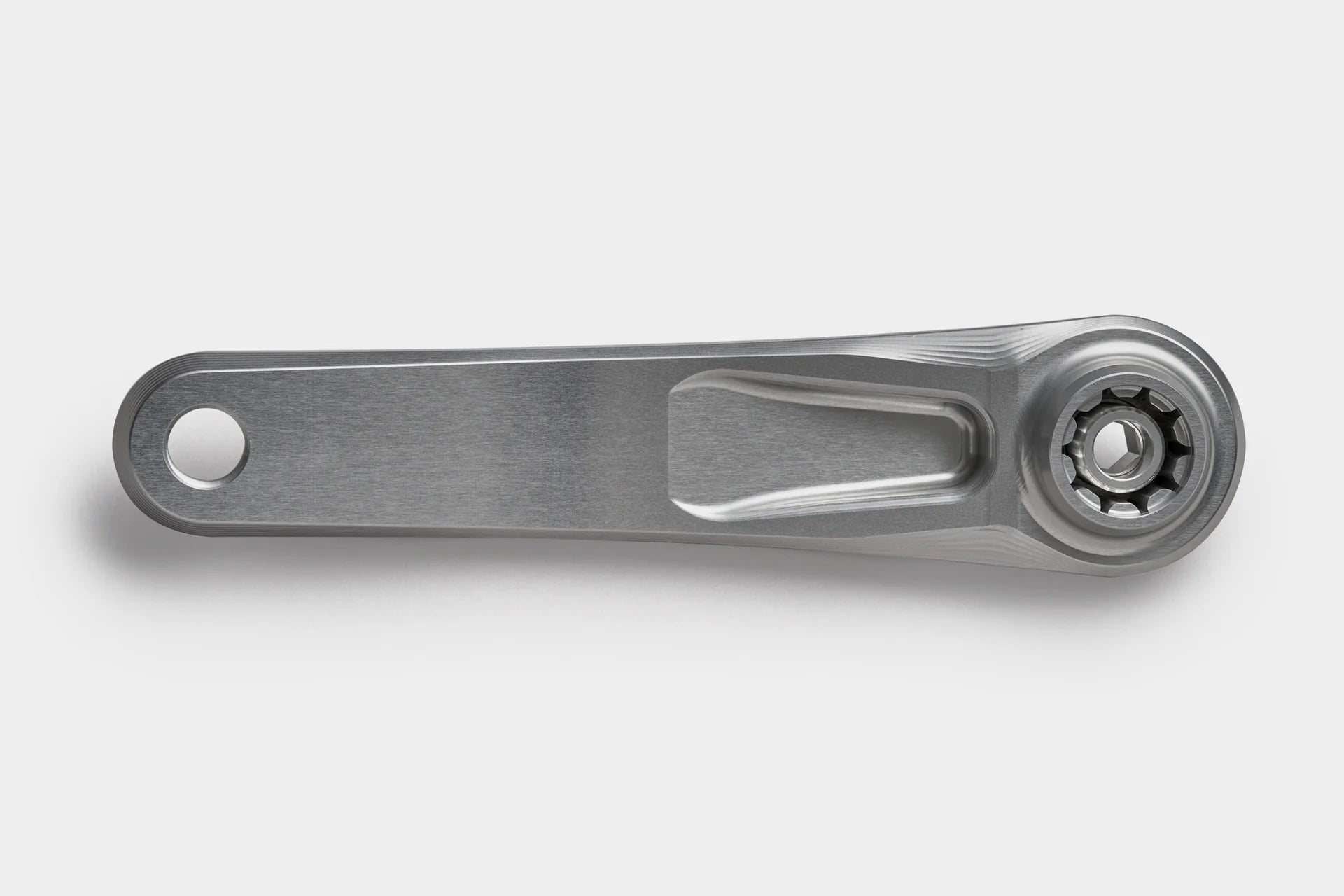

• Available in Black or Natural anodised finish - includes matching Bolt and Captive Nut in same colour as cranks
• 165mm arms = 456g
• 155mm arms = 436g
• 145mm arms = 416g
• PINND E-BIKE NARROW ISIS cranks are compatible with most e-bike systems using the ISIS spline interface. For example, Bosch systems (Gen 5, SX), Sram Powertrain systems and Brose systems
• With Bosch systems the Q-Factor is 180mm(CX Gen 5), 174mm (SX).
• For Brose systems the Q-Factor is 187mm.
Why shorter cranks?
- Reduce pedal strikes
- Better clearance on technical terrain
- Suited to modern e-MTB geometry
IMPORTANT NOTE the Specialized 2.2 motor units are 4mm offset towards the DS from the frame centreline. These ISIS E-Bike Cranks are identical offset (DS & NDS) and so using with Specialized 2.2 motor will result in your stance being offset by 4mm from frame centreline as well.
Installation Guide
Our installation guide is here as a tool to help you with the fitting of your PINND E-bike cranks. It is highly recommended that this is read before installing your cranks.
Warranty
These carry our Cranks For Life Warranty. Excluding crash damage or incorrect installation, we warranty our E-Bike Cranks for a lifetime. In the unlikely instance they fail, we’ll replace them or repair them free of charge. The cranks are warranted to be free of material and workmanship defects.
The warranty ends when the cranks become unusable for reasons other than defects in workmanship or material.
Should you damage a set beyond repair through crash or other misfortune we will replace them at a price of 50% of your original purchase price.
We do not cover any failures caused by misuse, modification or abnormal wear and tear. Neither do we have any responsibility for incidental or consequential damages.
